Salient Features

• Can be easily converted from NC to NO and from Double Acting to Single acting.
• Operator having threaded ports is ideally suited for area in which contamination due to exhaust air and sedimentation of particles in the operator crevices are not desired.
• Aluminum hard anodized piston.
• Corrosion resistive glass filled nylon operator.
• Brass inserts for operator port connections.
• More number of gland packings at Valve end & Operator end for longer life.
• Operator with threaded / NAMUR ports.
• Lubricated pilot air not necessary.

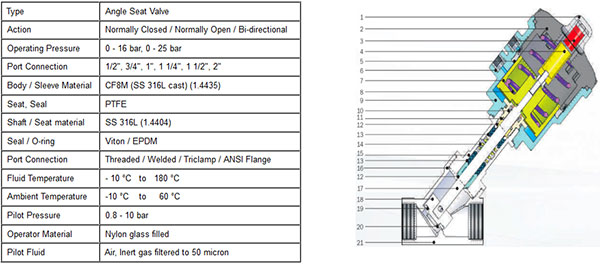

Specifications

Media

Steam, Air, Oil, Water, Liquid.

Applications

Air Drying Equipment, Autoclave, Bottling & Dispensing Equipment, Chemical & Petrochemical Industries, Coolant Control for Machine Tool, Fuel, Ink & Paint Dispensing, Industrial Compressor, Laundry Equipment,Nuclear Energy, Pollution Control Equipment, Process Control Application, Power Generation, Paper & Pulp Industries, PSA Plants, Pharmaceutical, Steam, Sterilizer, Textile Dyeing & Drying.

Salient Features

• Normally Closed / Normally Open / Bi-Directional.
• Can be easily converted from NC to NO and Single Acting to Double Acting.
• Life > 10 million cycles.
• Wetted parts : CF3M (SS 316L cast), SS 316L.
• Fast acting up to 2000 cycles / hour.
• Piston shaft well supported by rigid non metallic linear bearings avoiding metal to metal contact.
• Specially designed body with lower bends for higher flow.
• Burnished piston shaft.
• Ideally suited for vacuum service.
• Modular design.

Specifications

Media

Steam, Air, Oil, Water, Liquid.

Applications

Air Drying Equipment, Autoclave, Bottling & Dispensing Equipment, Chemical & Petrochemical Industries, Coolant Control for Machine Tool, Fuel, Ink & Paint Dispensing, Industrial Compressor, Laundry Equipment,Nuclear Energy, Pollution Control Equipment, Process Control Application, Power Generation, Paper & Pulp Industries, PSA Plants, Pharmaceutical, Steam, Sterilizer, Textile Dyeing & Drying.
