Features

Precision Linear Pneumatic Positioner is fitted with reversible cam which acts as a position feed back. The Linear Positioner which is mounted on a subbase, converts an ON OFF linear cylinder to regulating. The power cylinder can be integrated with standard mountings and various accessories.The positioner is high quality, flapper nozzle type.

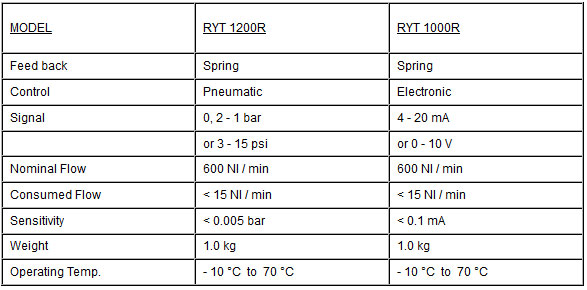

Specifications

Pneumatic Cylinder

Lever Feed Back

As a standard ROTEX provides Lever Feed Back. The lever movement being sinusoidal. The percentage opening behaves in similar fashion. The correction can be done either at DCS level or by correcting the internal cam on the positioner.

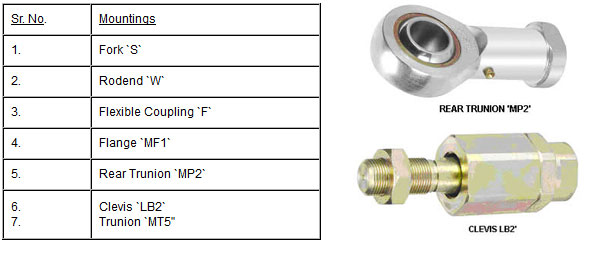

List Of Accessories

Features

• Electropneumatic positioner is fitted with a reversible cam. The cam acts as a feedback. Positioner accepts 4-20 mA input. The current directly operates flapper nozzle.

Specifications

Pneumatic Cylinder

Reversible Cam

ROTEX features on demand Reversible Cam construction. The profile can be easily dismantled and reversed on line. The repeatability and the functional accuracy does not change.

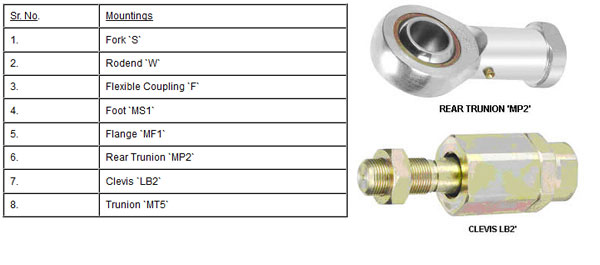

List Of Accessories

Features

• All the power cylinders can be supplied with optional accessories. Some accessories are factory fitted. Some can be installed at the later stage. It is highly recommended that you consult ROTEX for complete installation, application, etc. Air lock relays are more practical to be considered during various power failure made.
• POWER CYLINDER : Rotex power cylinder can be installed in various corrosive environments by selecting suitable material. Bellows and guards can be provided for physical protection.

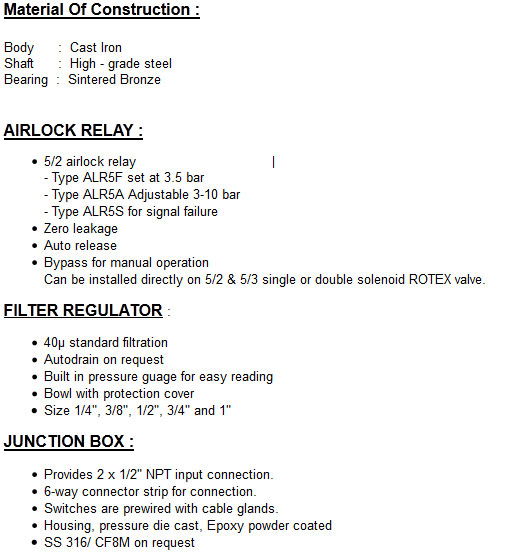

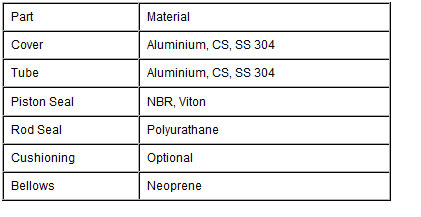

Material of Construction

Cylinder Mountings as per ISO 6431 and ISO 6432. All accessories can be installed or dismantled without removing cylinder covers.

Options
Manual Override

• Latch wheel for auto / manual.
• Self locking on external force.
• Safety key for excessive load
• Strokes upto 1800 mm
• Shaft made of special wear resistant steel for longer life

Manual override is used to operated the cylinder in an air failure mode. Th latch wheel engages the lead nut. The handwheel rotates the Lead Screw. When the screw rotates, the nut alog with the arm moves the piston rod.

Positioner

RYT - 1200R

• Cam operated feed back
• Reversible type, can be reversed at site.
• Sensitivity 0.1%.
• Repeatability 0.15%
• Input 3 - 15 psi

RYT - 1000R with built in I/P convertor with input 4 - 20 mA.

RYT - 1200R

• Sensitivity 0.1%
• Auto setup
• Programmable stops from 4 - 20 mA

Positioner Fetures

Positioner Transmitter

PTR01 / CTR01 / DRT01
• 2 wire system
• 24 V DC Max. 29 V DC.
• Intrinsically safe, IP65
• Linearity 0.5% Full scale
• Zero and span can be adjusted
• SMART transmitter available
• Life > 1 million cycle
• Inductive / capacitance or digital

Limit Switch

DLLW..

• IP65, Aluminium die cast body
• M20X1.5, 1/2" NPT twin cable entry
• Switching element
  • - Mircro switch : Honeywell , Cherry Max. 10 Amp.
  • - Proximity : P & F, NAMUR (Intrinsic Safe)
• Easy to set cam. Cover need not be opened to set cams
• Independent to stroke of power cylinder
• Terminal strip for easy cabling
• Explosion proof and IP67 available

Rotex limit switch can be installed on cylinder directly. Switching elements can be microswitch or proximity switch.

Sizes

32 mm TO 500 mm, non cushioned type stroke upto 1500 mm.
